Flow Conditions

This guide provides a comprehensive overview of the flow control statements, referred to as Flow Conditions within Mini Mouse Macro, that enable you to create powerful and dynamic macros.

Flow conditions are essential for building macros that can make decisions, repeat actions, and handle complex logic. By using these conditions, you can control the flow of your macros, determining which actions are executed based on various criteria, and creating loops to perform repetitive tasks efficiently. This allows you to create macros that respond intelligently to different scenarios and automate intricate workflows.

Table of Contents
  1. Overview
  2. IF Condition
  3. IF NOT Condition
  4. IF THEN ELSE
  5. Nested IF Blocks
  6. ELSE Condition
    1. Adding ELSE to a Condition
    2. Best Practices
  7. AND Condition
    1. Adding AND to a Macro Line
    2. Notes on AND
  8. FOR Loops
    1. Internal Variables
    2. FOR EACH Loops
    3. FOR EACH FILE IN FOLDER
    4. FOR EACH LINE IN FILE
    5. FOR EACH LINE IN FILE RUN
      1. Notes on FOR EACH LINE IN FILE RUN
    6. FOR I Loops
      1. Notes on FOR Loops
  9. RUN ACTION
    1. Notes on Flow Control

Overview

Flow conditions are pivotal in creating complex macros. They allow the user to:

  • Branch logic: Execute actions conditionally using IF, IF NOT, IF THEN ELSE, and ELSE.
  • Loop: Iterate over a set of values, files, or folders with FOR loops.
  • Nest Conditions: Create multi-level, interdependent logic for advanced macro control.
  • Combine Actions: Use AND to chain multiple actions or conditions within a single line for streamlined execution.
  • Control Macro Execution: Incorporate RUN ACTION statements for custom tasks such as file operations, mouse movements, or command-line executions.

IF Condition

The IF condition checks if a statement is true and executes subsequent actions if the condition is met.

Example: Basic IF Statement

1 | IF | FILE | C:\MMM\Skip.mmmacro | EXIST | CONTINUE

Explanation - Basic IF Statement

  • Line 1: This checks if the file C:\MMM\Skip.mmmacro exists. If it does, the macro continues execution; otherwise, it halts.

IF NOT Condition

The IF NOT condition evaluates whether a statement is not true and executes actions if the condition evaluates as false.

Example: Basic IF NOT Statement

1 | IF NOT | FILE SIZE | C:\MMM\Skip.mmmacro | IS | 2929 | STOP

Explanation - Basic IF NOT Statement

  • Line 1: This checks if the size of the file C:\MMM\Skip.mmmacro is not 2929 bytes. If this condition is true, the macro stops.

IF THEN ELSE

The IF THEN ELSE block allows for branching logic, where actions are executed based on whether a condition is true or false.

Example 1: Basic Block

1 | IF | BOOLEAN VARIABLE | %BOOLEAN% | IS TRUE | THEN
   2 | RUN ACTION | MESSAGE PROMPT | TRUE
3 | IF | ELSE
   4 | RUN ACTION | MESSAGE PROMPT | FALSE
5 | IF | END IF

Explanation - Basic IF THEN ELSE Block

  • Line 1: Starts the IF THEN ELSE block and checks if the boolean variable %BOOLEAN% is TRUE.
  • Line 2: Executes the MESSAGE PROMPT action to display “TRUE” if the condition is met.
  • Line 3: Starts the ELSE block.
  • Line 4: Executes the MESSAGE PROMPT action to display “FALSE” if the condition is not met.
  • Line 5: Ends the IF THEN ELSE block.

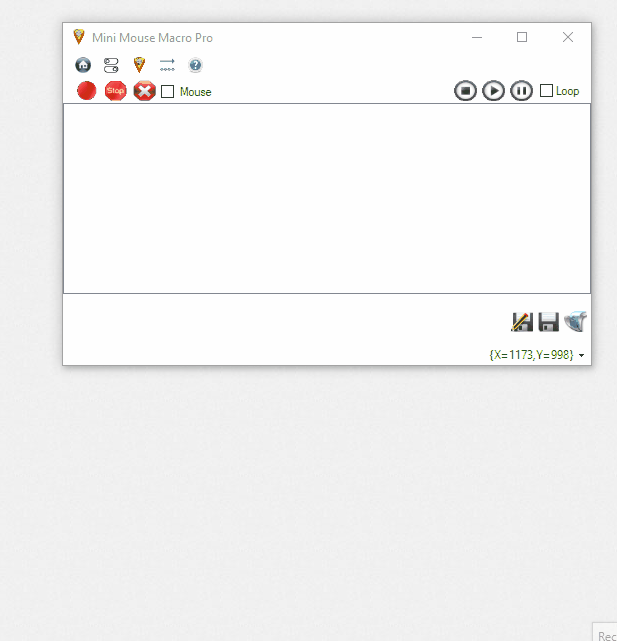

IF THEN ELSE Example

Nested IF Blocks

You can nest IF statements within other IF blocks to evaluate multiple conditions simultaneously.

Example: Nested IF Blocks

1 | IF | FOLDER | C:\Macro\File\pics\ | EXIST | THEN
   2 | IF | DETECT IMAGE | image path C:\File\pics\capture.bmp::match quick::move mouse yes | IMAGE FOUND | THEN
      3 | RUN ACTION | MOUSE CLICK | Left click at %mouse_x% %mouse_y% 10 times with 10 ms delay and lock the mouse
      4 | RUN ACTION | DEFINE BOOLEAN VARIABLE | %boolImageFound%::TRUE
   5 | IF | ELSE
      6 | RUN ACTION | DEFINE PIXEL RANGE VARIABLE | %PIXEL_RANGE%::At location [X:89 Y:124 W:100 H:100]::Save image to C:\File\pics\capture.bmp
      7 | RUN ACTION | DEFINE BOOLEAN VARIABLE | %boolImageFound%::FALSE
   8 | IF | END IF
9 | IF | END IF

Explanation - Nested IF Blocks

  • Lines 1: Starts the root IF block and checks if a folder exists and detects an image in the folder.
  • Lines 2: Starts the nested IF THEN ELSE block and evaluates the DETECT IMAGE condition.
  • Lines 3–4: Executes actions when the image is found.
  • Lines 5: Starts the ELSE block for the nested IF statement.
  • Lines 6–7: Executes alternative actions if the image is not found.
  • Line 8: Ends the nested IF THEN ELSE block.
  • Line 9: Ends the root IF block.

⬆️ Back to Top

ELSE Condition

The ELSE condition complements IF and IF NOT statements, enabling alternate logic execution when the primary condition evaluates to FALSE. In essence, ELSE specifies an alternate flow of execution, functioning as a fallback mechanism for conditions that fail to meet the TRUE criteria.

Notably, ELSE cannot be paired with an initial condition that uses the CONTINUE action. This limitation exists because CONTINUE enforces that the primary condition must evaluate to TRUE before allowing the macro to proceed, rendering the ELSE branch unreachable.

Example 1: Simple ELSE Statement

* | Line | Condition | Action

* | This macro checks if the file C:\MMM\Skip.mmmacro exists. If it does, it displays a message. If not, it creates a new file.

* | if the file exist, goto line 5. If not, goto line 2
1 | IF | FILE | C:\MMM\Skip.mmmacro | EXIST | GOTO MACRO LINE | 5 | ELSE | 1 | RUN ACTION | GOTO MACRO LINE | 2

* | The file does not exist, prompt the user and then create a new file.
2 | MESSAGE PROMPT | File does not exist.  Creating now...::File not found::0
3 | RUN ACTION | FILE CREATE | D:\Macro\Bytes\file1.out::B::100

* | Output to the file and then run the action to go to line 6
4 | RUN ACTION | OUTPUT TO FILE | D:\Macro\Bytes\file1.out::APPEND::%DATE% %TIME% | AND | 4 | RUN ACTION | GOTO MACRO LINE | 6

* | The file exists, display a message - Line 1 sent us to line 5, Line 4 skips to line 6
5 | RUN ACTION | MESSAGE PROMPT | File exists::File found::0

* | Macro execution complete - Line 4 sent us to line 6 and line 5 continues to line 6
6 | RUN ACTION | MESSAGE PROMPT | Macro execution complete::Success::0

Explanation - Simple ELSE Statement

  • If the file C:\MMM\Skip.mmmacro exists, the macro will display a message indicating the file was found and then proceed to line 6.
  • If the file does not exist, the macro will display a message indicating the file was not found, create a new file, output the date and time to the file, and then proceed to line 6.

Example 2: Nested ELSE Condition

1 | IF | FILE | C:\MMM\Skip.mmmacro | EXIST | GOTO MACRO LINE | 7 | ELSE | 1 | IF | FILE | C:\MMM\Skip2.mmmacro | EXIST | ADD MACRO FROM FILE | C:\MMM\Skip2.mmmacro

Explanation - Nested ELSE Condition

  • If the first condition is true (the file exists), the macro will skip to line 7 and end the IF block.
  • If the first condition evaluates to false (the file does not exist), the macro will evaluate a second condition to check if the file C:\MMM\Skip2.mmmacro exists.
  • If the second file exists, the macro will run the ADD MACRO FROM FILE action to include the contents of C:\MMM\Skip2.mmmacro in the current macro.

Alternative Syntax:

1 | IF | FILE | C:\MMM\Skip.mmmacro | EXIST | THEN
   2 | GOTO MACRO LINE | 7
3 | IF | ELSE
   4 | IF | FILE | C:\MMM\Skip2.mmmacro | EXIST | THEN
      5 | RUN ACTION | ADD MACRO FROM FILE | C:\MMM\Skip2.mmmacro
   6 | IF | END IF
7 | IF | END IF
  • The alternative syntax provides a more structured approach with the use of the IF THEN ELSE block, enhancing readability and maintainability.

Adding ELSE to a Condition

To add ELSE to a condition:

  1. Create your initial IF or IF NOT condition but do not click “OK”.
  2. Check the ELSE checkbox.
  3. Select either IF, IF NOT, or RUN ACTION as the condition. This will add the condition after the ELSE.

Syntax Examples

  • [LINE #] | [FIRST CONDITION] | ELSE | [LINE #] | [CONDITION]
  • [LINE #] | [FIRST CONDITION] | ELSE | [LINE #] | [ACTION]
  1. Select your object. This will add an object condition after the condition.

Extended Syntax Example

[LINE #] | [FIRST CONDITION] | ELSE | [LINE #] | [CONDITION] | [OBJECT] | [OPERATOR] | [ACTION]

Best Practices

  • It is best to follow this procedure for each ELSE condition added to ensure proper functionality and clarity in your macro logic.
  • Use ELSE to create fallback actions when the primary condition evaluates to FALSE.
  • Avoid using ELSE with conditions that employ the CONTINUE action to maintain logical consistency.
  • Nest ELSE conditions to create multi-level branching logic for complex macro workflows.
  • Test your ELSE conditions thoroughly to ensure they execute as expected.
  • Use IF THEN ELSE blocks instead of the singular ELSE for more complex branching logic.

⬆️ Back to Top

AND Condition

AND is used to append additional actions and conditions to macro lines once they evaluate to TRUE. This allows for streamlined execution of multiple actions or conditions within a single line.

Adding AND to a Macro Line

To add AND to a macro line:

  1. Left-click to select the macro line.
  2. Right-click to bring up the Edit Menu and select Edit Entry.
  3. Select Action, then Add AND Action.

Example 1: Basic AND Usage

1 | IF | FILE | D:\Macro\OUTPUT\output.txt | EXIST | MESSAGE PROMPT | File Exists - Starting Output Write::File Exists::0 | AND | 2 | RUN ACTION | OUTPUT TO FILE | D:\Macro\OUTPUT\output.txt::APPEND::%STRING%

Explanation - Basic AND Usage

  • If the file output.txt exists, the macro will display a message prompt and, using AND, also output the variable %STRING% to the file.
  • If the file does not exist, the message prompt will not show, and the AND action will not execute.

Alternative Syntax:

1 | IF | FILE | D:\Macro\OUTPUT\output.txt | EXIST | THEN
   2 | RUN ACTION | MESSAGE PROMPT | File Exists - Starting Output Write::File Exists::0
   3 | RUN ACTION | OUTPUT TO FILE | D:\Macro\OUTPUT\output.txt::APPEND::%STRING%
4 | IF | END IF
  • The alternative syntax provides a more structured approach to the IF THEN ELSE block, enhancing readability and maintainability.

Example 2: AND with ELSE

1 | IF | FILE | D:\Macro\OUTPUT\output.txt | EXIST | MESSAGE PROMPT | File Exists - Starting Output Write::File Exists::0 | AND | 2 | RUN ACTION | OUTPUT TO FILE | D:\Macro\OUTPUT\output.txt::APPEND::%STRING% | ELSE | 3 | RUN ACTION | MESSAGE PROMPT | File does NOT Exist::File not found::0

Explanation - AND with ELSE

  • If the file output.txt exists, the macro performs the MESSAGE PROMPT action and appends %STRING% to the file.
  • If the file does not exist, the macro skips the message prompt output and the AND statement and instead executes the ELSE action to display a message indicating the file was not found.

Alternative Syntax:

1 | IF | FILE | D:\Macro\OUTPUT\output.txt | EXIST | THEN
   2 | RUN ACTION | MESSAGE PROMPT | File Exists - Starting Output Write::File Exists::0
   3 | RUN ACTION | OUTPUT TO FILE | D:\Macro\OUTPUT\output.txt::APPEND::%STRING%
4 | IF | ELSE
   5 | RUN ACTION | MESSAGE PROMPT | File does NOT Exist::File not found::0
6 | IF | END IF
  • The alternative syntax provides a more structured approach to the IF THEN ELSE block, enhancing readability and maintainability.
  • The ELSE block is clearly separated from the primary condition, ensuring a logical flow of execution.

Example 3: Keypress and Mouse Movement with AND

1 | 2098 | 363 | 1000 | Keypress Output 1 | AND | 4 | 1883 | 206 | 10 | Mouse Movement | AND | 4 | 1883 | 206 | 10 | Keypress Output 2

Explanation - Keypress and Mouse Movement with AND

  • Combines multiple actions: a keypress, mouse movement, and another keypress within a single macro line using AND.

Notes on AND

  • AND actions or conditions only execute if the preceding condition or action evaluates to TRUE or succeeds.
  • AND does not add additional condition evaluation to a macro statement. Instead, it chains multiple actions into one logical flow.
  • Using AND in conjunction with ELSE ensures logical separation of conditions and fallback behavior.

Typical Use Case Example

1 | IF | PROCESS ID | 12888 | EXIST | KILL PROCESS ID | 12888 | AND | 2 | IF | PROCESS ID | 12888 | NOT EXIST | MESSAGE PROMPT | Process 12888 Killed::Process 12888 Status::0

Explanation - Typical Use Case

  • If the process with ID 12888 exists, it will be terminated. After termination, the macro checks if the process no longer exists and displays a message prompt.

Advanced Example: Chaining Multiple AND Statements

1 | RUN ACTION | RUN VIA CMD /C | start d:\process_generate.bat | AND | 2 | RUN ACTION | WAIT MINUTES | 1 | AND | 3 | IF | PROCESS NAME | process_build | EXIST | MESSAGE PROMPT | process_generate successful::SUCCESS::0 | ELSE | 3 | RUN ACTION | MESSAGE PROMPT | process_generate unsuccessful::FAIL::0

Explanation - Chaining Multiple AND Statements

  • Executes a series of actions: runs a batch file, waits for a minute, checks for a process, and displays success or failure messages based on the condition.

Alternative Syntax:

1 | RUN ACTION | RUN VIA CMD /C | start d:\process_generate.bat
2 | RUN ACTION | WAIT MINUTES | 1
3 | IF | PROCESS NAME | process_build | EXIST | THEN
   4 | RUN ACTION | MESSAGE PROMPT | process_generate successful::SUCCESS::0
5 | IF | ELSE
   6 | RUN ACTION | MESSAGE PROMPT | process_generate unsuccessful::FAIL::0
7 | IF | END IF
  • The alternative syntax provides a more structured approach to the IF THEN ELSE block, enhancing readability and maintainability.

AND is a powerful feature for combining multiple actions or conditions into a cohesive workflow. Proper use of AND can simplify and condense complex macro logic.

⬆️ Back to Top

FOR Loops

FOR loops are a powerful tool in Mini Mouse Macro that allow for iterating over ranges, files, or lines. They add several internal variables that can be used for evaluation during execution.

Internal Variables

The following internal variables are available for use within FOR loops:

  • %I%: The count for the current iteration of the FOR loop.
  • %LINE%: Used in FOR EACH LINE loops, holds the current text line in a file.
  • %FILE%: The full file path and name of the current file in a FOR EACH FILE loop.
  • %FILE.NAME%: The file name of the current file in a FOR EACH FILE loop.
  • %FILE.EXT%: The file extension of the current file (e.g., .txt, .rtf).
  • %FILE.PATHROOT%: The root of the file path for the current file.
  • %FILE.PATH%: The file path without the file name of the current file.
  • %FILE.ACCESSTIME%: The last access time of the current file.
  • %FILE.WRITETIME%: The last write time of the current file.
  • %FILE.CREATIONTIME%: The creation time of the current file.

There are two types of FOR loops in Mini Mouse Macro:

  1. FOR EACH loop: Iterates through files in a folder or lines in a file.
  2. FOR I loop: Iterates over a numerical range.

FOR EACH Loops

FOR EACH loops provide the ability to iterate over files in folders or lines in files. The types of FOR EACH loops are:

  • FOR | EACH | FILE IN | FOLDER | DO
  • FOR | EACH | FILE IN -R | FOLDER | DO
  • FOR | EACH | LINE IN | FILE | DO
  • FOR | EACH | LINE IN | FILE | RUN
  • FOR | I | = | START TO END | NEXT

FOR EACH FILE IN FOLDER

FOR EACH FILE IN FOLDER iterates over all files in a specified folder.

Example: Iterating Over Files in a Folder

1 | FOR | EACH | FILE IN | C:\Macro\Files | DO
   2 | RUN ACTION | MESSAGE PROMPT | File: %FILE.NAME% Path: %FILE.PATH%
3 | FOR | NEXT

Explanation - Iterating Over Files in a Folder

  • Line 1: Iterates through all files in C:\Macro\Files.
  • Line 2: Displays the file name and path for each file.
  • Line 3: Ends the loop.

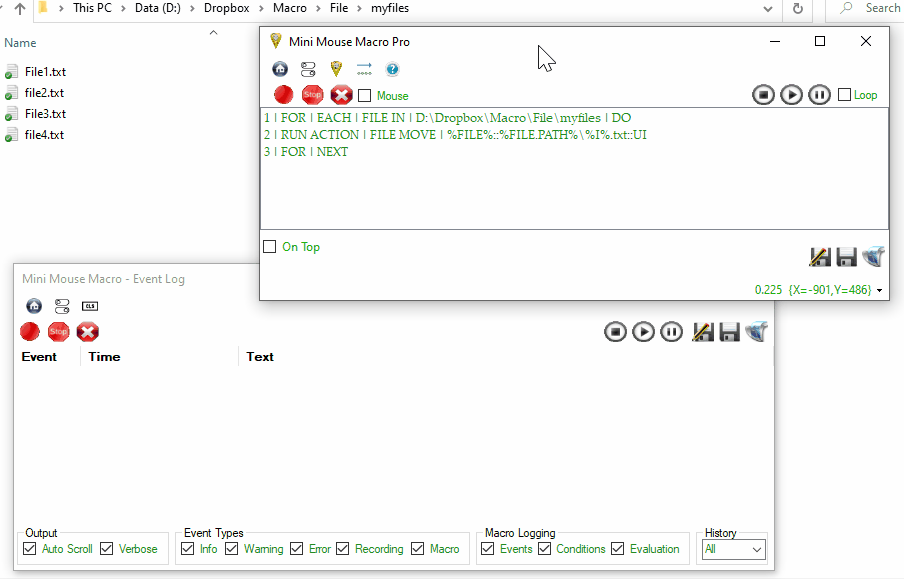

FOR EACH FILE Example

Example: Recursive File Iteration

1 | FOR | EACH | FILE IN -R | C:\Macro | DO
   2 | RUN ACTION | MESSAGE PROMPT | File: %FILE.NAME%
3 | FOR | NEXT

Explanation - Recursive File Iteration

  • Line 1: Recursively iterates through all files in the C:\Macro directory.
  • Line 2: Displays the name of each file.
  • Line 3: Ends the loop.

Example: Encrypting Files Recursively

1 | FOR | EACH | FILE IN -R | E:\DOCS | DO
   2 | IF | STRING VARIABLE | %FILE.EXT% | IS NOT | .aes | ENCRYPT FILE (AES) | %FILE%::MyPassword::DELETE_ORIGINAL
3 | FOR | NEXT

Explanation - Encrypting Files Recursively

  • Line 1: Recursively iterates through all files in the E:\DOCS directory.
  • Line 2: Checks if the file extension is not .aes and encrypts the file if the condition is met.
  • Line 3: Ends the loop.

⬆️ Back to Top

FOR EACH LINE IN FILE

FOR EACH LINE IN FILE iterates over each line in a specified file.

Example: Processing Lines in a File

1 | FOR | EACH | LINE IN | C:\Macro\input.txt | DO
   2 | RUN ACTION | MESSAGE PROMPT | Line Content: %LINE%
3 | FOR | NEXT

Explanation - Processing Lines in a File

  • Line 1: Iterates through each line in the file input.txt.
  • Line 2: Displays the content of the current line.
  • Line 3: Ends the loop.

Example: Processing Lines in Files Recursively

1 | FOR | EACH | FILE IN -R | E:\docs | DO
   2 | FOR | EACH | LINE IN | %file% | DO
      3 | IF | STRING VARIABLE | %LINE% | CONTAINS | %date% - Out | OUTPUT TO FILE | E:\out.txt::APPEND::%file%;
   4 | FOR | NEXT
5 | FOR | NEXT

Explanation - Processing Lines Recursively

  • Line 1: Recursively iterates through all files in the E:\docs directory.
  • Line 2: Iterates through each line in the current file.
  • Line 3: Checks if the current line contains the specified date and appends the file name to E:\out.txt if the condition is met.
  • Lines 4-5: End the nested loops.

Example: Sending UDP Packets Based on Ping Response

1 | FOR | EACH | LINE IN | D:\Macro\TX\send.txt | DO
   2 | IF | NETWORK HOST PING REPLY | %LINE% | SUCCESSFUL | SEND UDP PACKET STRING | %LINE%::41414::BEGIN
   3 | IF | RECEIVE UDP PACKET STRING | %LINE%::41413::FIN::30000 | STRING FOUND | SEARCH FOR STRING | OUTPUT TO FILE | D:\Macro\RX\hostRX_110.txt::APPEND::.D.%DATE%.T.%TIME%.Success_
4 | FOR | NEXT

Explanation - Sending UDP Packets

  • Line 1: Iterates through each line in send.txt.
  • Line 2: Sends a ping to the current line’s value. If successful, sends a UDP packet with the string ‘BEGIN’ to port 41414.
  • Line 3: Waits 30 seconds for a UDP reply with the string ‘FIN’ from port 41413. If received, appends success information to hostRX_110.txt.
  • Line 4: Ends the loop.
Sample Input send.txt File
192.168.0.10
192.168.0.15
192.168.0.20

This file send.txt contains the IP addresses to which the macro will send UDP packets based on the ping response.

Sample Output hostRX_110.txt File
.D.2021-09-01.T.12-00-00.Success_192.168.0.10
.D.2021-09-01.T.12-00-30.Success_192.168.0.15
.D.2021-09-01.T.12-01-00.Success_192.168.0.20

⬆️ Back to Top

FOR EACH LINE IN FILE RUN

FOR EACH LINE IN FILE RUN processes each line in a file as a separate macro.

Example: Running Commands from Macro Files

1 | FOR | EACH | LINE IN | D:\Macro\commands1.mmmacro | RUN
2 | FOR | EACH | LINE IN | D:\Macro\commands2.mmmacro | RUN
3 | FOR | EACH | LINE IN | D:\Macro\commands3.mmmacro | RUN
4 | FOR | EACH | LINE IN | D:\Macro\commands4.mmmacro | RUN

Explanation - Running Commands from Macro Files

  • Lines 1-4: Steps through each command in the specified .mmmacro files. Each file is processed line by line, and the next file begins after the previous one completes.

Notes on FOR EACH LINE IN FILE RUN

  • This command works best with .mmmacro files containing no flow control.
  • Mini Mouse Macro expects the same format as a saved .mmmacro file.
  • FOR loops and GOTO statements within these files will not work.

FOR I Loops

FOR I loops iterate over a range of numbers, making it easy to repeat actions a specific number of times.

Example: Simple Number Iteration

1 | FOR | I | = | 1 TO 10 | NEXT
   2 | RUN ACTION | MESSAGE PROMPT | Iteration: %I%
3 | FOR | NEXT

Explanation - Simple FOR I Loop

  • Line 1: Initializes a loop to iterate from 1 to 10.
  • Line 2: Displays the current iteration number.
  • Line 3: Ends the loop.

Example: Conditional FOR I Loop

1 | FOR | I | = | 1 TO 10 | NEXT
   2 | IF | BOOLEAN VARIABLE | %BOOLEAN% | IS TRUE | THEN
      3 | RUN ACTION | MESSAGE PROMPT | Iteration: %I% is valid.
   4 | IF | END IF
5 | FOR | NEXT

Explanation - Conditional FOR I Loop

  • Line 1: Initializes a loop to iterate from 1 to 10.
  • Lines 2–4: Executes actions only if the boolean variable %BOOLEAN% is TRUE.
  • Line 5: Ends the loop.

Notes on FOR Loops

  1. Nested Loops: FOR loops can be nested for more complex iterations.
  2. Internal Variables: Use the provided internal variables to interact dynamically with files, lines, and other elements.
  3. Recursive Searches: Use -R to enable recursive folder searching.

This section comprehensively covers FOR loops, ensuring all content from conditions.txt is included. Let me know if more details or adjustments are required!

⬆️ Back to Top

RUN ACTION

The RUN ACTION command is a versatile way to perform specific tasks within Mini Mouse Macro. It allows you to execute predefined actions, such as displaying messages, moving the mouse, or modifying files.

The full list of available actions can be found in the Actions Condition guide.

Example 1: Displaying a Message Prompt

1 | RUN ACTION | MESSAGE PROMPT | Task completed successfully!::Success::0

Explanation - Message Prompt

  • Line 1: Executes a MESSAGE PROMPT action displaying the message “Task completed successfully!” with the title “Success.”

Example 2: Moving the Mouse to a Location

1 | RUN ACTION | MOUSE MOVEMENT | -1414-912:10,-1412-912:10,-1411-912:10,-1409-912:26,-1407-912:24,-1407-913:10,-1406-913:14

Explanation - Mouse Movement

  • Line 1: Moves the mouse cursor through a series of screen coordinates specified in the format X-Y:duration. Each coordinate pair represents a point the mouse will move to, with the duration indicating how long the movement should take.

Example 3: Defining a Variable

1 | RUN ACTION | DEFINE STRING VARIABLE | %username%::JohnDoe

Explanation - Variable Definition

  • Line 1: Creates a string variable %username% and assigns it the value JohnDoe.

Example 4: Performing a File Operation

1 | RUN ACTION | FILE COPY | C:\Source\file.txt::C:\Destination\file.txt

Explanation - File Copy

  • Line 1: Copies the file file.txt from the C:\Source directory to the C:\Destination directory.

Example 5: Running a Command-Line Task

1 | RUN ACTION | RUN VIA CMD /C | echo Hello, World!

Explanation - Command Execution

  • Line 1: Executes a command-line action to display “Hello, World!” in the terminal.

Example 6: Waiting for a Specific Duration

1 | RUN ACTION | WAIT SECONDS | 5

Explanation - Wait Command

  • Line 1: Pauses the macro for 5 seconds before continuing execution.

Notes on Flow Control

  • IF
    • IF, IF NOT, and IF THEN ELSE blocks can be nested to create complex logic structures.
    • ELSE conditions must follow an IF or IF NOT statement and cannot be used if the initial condition employs a CONTINUE action. This restriction ensures the logical flow remains coherent, as CONTINUE mandates the primary condition to evaluate as TRUE before proceeding.
    • All IF blocks must close with an END IF.
  • FOR
    • FOR loops can iterate over ranges, files, or lines, and must be concluded with a NEXT statement. They provide internal variables like %I%, %LINE%, and %FILE% for dynamic interaction during execution.
    • FOR EACH loops can iterate over files in folders or lines in files, while FOR I loops iterate over numerical ranges. They offer internal variables for dynamic evaluation during execution.
  • AND
    • AND are used to chain multiple actions or conditions within a single line for streamlined execution.
    • AND actions or conditions only execute if the preceding condition or action evaluates to TRUE or succeeds. Nesting Conditions
    • Nested blocks can significantly enhance macro complexity but should be used cautiously to maintain clarity.

⬆️ Back to Top
